| Place of Origin: | China |
| Brand Name: | Wellmade |
| Model Number: | TPCR-08/MD60 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton Box |
| Delivery Time: | 2-4 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000SET PER MONTH |
| Color: | Orange,Blue, Green,Black | Temperature Accuracy: | Within 0.3% |
|---|---|---|---|
| Sensor Type: | J Type Or K Type Optional |

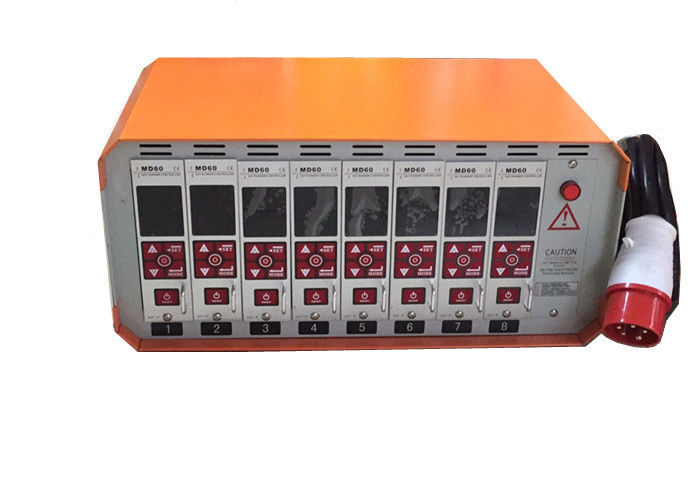

8zone hot runner temperature control systems for hot runner plastic mold.
We Wellmade customise all kinds of hot runner controllers as customer requirement.
Hot Runner Controller Features:
1. The controller's shape and installation method adopt international standard structure,and it is suitable for any standard controller cabinet.
2. The controller power wiring system and load connection method are standard structures.
3. Each control card controls the heater temperature of one circuit.
4. The controller card is convenient to insert and dial.
5. It is interchangeable with other brand controller card.
6. It is suitable for all hot runner heaters with a load not exceeding 15A.If over 15A,please contact us.
7. OEM is available
8. Variety of models for your choice
Product Specifications:
| Product Specifications: | ||||||
| Sensor Type: | Thermocouple(J or K Type) | |||||
| Temperature Unit: | ℉ or ℃ | |||||
| Service Ambient Temperature: | 32℉-131℉(0-55℃) | |||||
| Storage Ambient Temperature: | -40℉-158℉(-40-70℃) | |||||
| Sensor Temperature Range: | 32℉-860℉(0-450℃) | |||||
| Temperature Accuracy: | Within 0.3% | |||||
| Fuse Protection: | 220V 15A, 2 Fast Acting Fuse | |||||
| Control Output Mode: | Two-way Triac,15A 220VAC | |||||
| Power Supply: | 86-240VAC 50/60HZ | |||||
Function and characteristics:
1. Light-touch key and double row 4 bits LED display mode
2. Simple operation,accurate temperature control
3. Control mode: SSr or PAc
4. FUZZY + PID control algorithm, Automatic or manual setting
5. Connected wrong AC380V,power auto-protection
6. Alarm code & alarm status
| E01 | Temperature exceed the setting limit | ||||||||
| E02 | Thermocouple open or not connected to thermocouple | ||||||||
| E03 | Thermocouple positive and negative poles reverse | ||||||||
| E04 | Heater disconnected or not connected to heater | ||||||||
| E05 | Triac broken short circuit | ||||||||
| E06 | Thermocouple short circuit | ||||||||
| E07 | Heater short circuit or current over load | ||||||||
| E08 | Fuse broken | ||||||||
| E09 | Heater and thermocouple wire reversed | ||||||||
Precautions before use hot runner controller:
1. When connecting the power cord, you must connect to the power supply as indicated on the label
2. Check if the mold wiring method matches with the temperature controller wiring method
3. Check the insulation of the heaters are qualified
4. Confirm that the input voltage meets the temperature control box voltage specification
5. It is best to turn off the power switch before powering up
6. After powering up, make sure the fan is working
7. Replace the temperature control card or wiring, do not operate with power
Housing Selection:

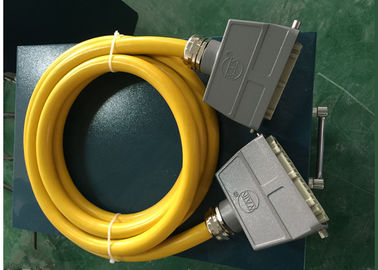

Connecting Method:
More information,please contact us anytime.
