Name: Plastic cable glands,cable fittings and accessories,connector gland,PG7,9,11,13.5,16,21,29,36,42,48 optional
Brand: Wellmade IND. Manufacturing(HK) Ltd
SKU: PG series
Availability: InStock

Home Products Heavy Duty Connector Box

Plastic cable glands,cable fittings and accessories,connector gland,PG7,9,11,13.5,16,21,29,36,42,48 optional

Product Details:

Place of Origin:	China
Model Number:	PG series

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	Carton Box
Delivery Time:	1-5 working days
Payment Terms:	T/T
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

Product Name:	Cable Gland	Material:	Ployamide
Seal Material:	NBR	Press Seal Material:	PA
Protection Degree:	IP68

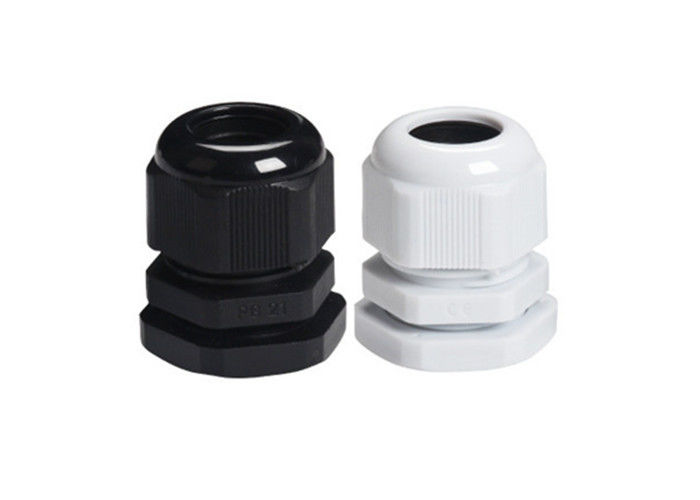

Plastic cable glands,PG7,9,11,13.5,16,21,29,36,42,48 series,black/grey color optional

Thread	Clamping range	AG	SW	GL
PG7	3-6.5	12.5	14	6
PG9	4-8	15.2	18	6.5
PG11	5-10	18.6	20	7
PG13.5	6-12	20.4	22	7.5
PG16	8-14	22.5	25	7
PG21	13-18	28.3	30	8
PG29	18-25	37	40	9.5
PG36	22-32	47	50	12
PG42	31-38	54	58	12
PG48	37-44	59.3	65	12


Material	Ployamide
Seal material	NBR
Press seal material	PA
Temperature range	-40℃--+100℃
Degree of protection	IP68

More information,please contact us anytime!
