| Place of Origin: | China |
| Brand Name: | Wellmade |
| Model Number: | WMMT100-06 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton Box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100SETS PER MONTH |
| Power Supply: | 86-240VAC 50/60HZ | Temperature Accuracy: | 0.01S |
|---|---|---|---|
| Control Mode: | Air Or Hydraulic Pressure | Zone: | As Requirement |
We focus on manufacturing hot runner temperatuer controller & timer controller for global injection molding company and mold maker.
Choose us, it will save cost for your company.
Hot Runner Sequential Timer Controller
Integrated valve sequence time controller is dedicated to valve gate hot runner system. According to the injection molding machine signal, the valve pin action is accurately multi-stage, delay control. The controller is equipped with a high-power power supply, It can drive 8 zone air valves or oil valves at the same time. The delay precision reaches 0.01 seconds, the display is intuitive, the operation is simple, safe and practical.

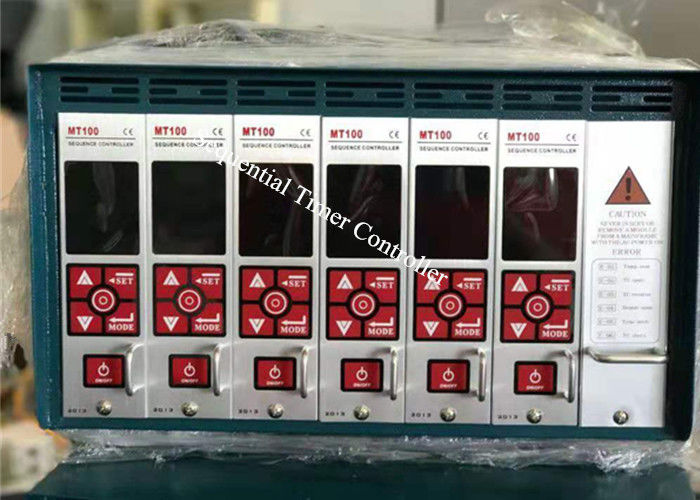

MT100 Squential Timer Controller
| Product Name: | Sequential Timer Controller | |||||
| Product Code: | WMMT100(for air or Hydraulic pressure) | |||||
| Controller Box: | The same with temperature controller | |||||
| Product Specifications: | ||||||
| Ambient Temperature : |
0℃-55℃ | |||||
| Storage Temperature : |
-40℃-70℃ | |||||
| Delay the Number of Segments: | mode A(1segment),B(2 sections),C(3 sections),D(4 sections) | |||||
| Delay Time Setting Range: | 0----9999S | |||||
| Temperature Accuracy | 0.01S | |||||
| Rated Load: | DC24V 1.5A or AC220V 1.0A | |||||
| Receiving the Injection Signal: | AC220V or DC24V or passive contact | |||||
| Power Supply: | 86-240VAC 50/60HZ | |||||
MT100 Squential Timer Controller Features:
1. Control card interface using five touch of a button
2. Two-line 4 figures LED display, text display operating status
3. Easy to operate, new users can quickly enter the working state
4. Cabinet International standard structure, easy to replace, can be used with other manufacturers
5. Installation using standard temperature control box
More information,please contact us anytime.
