| Place of Origin: | China |
| Brand Name: | Wellmade |
| Model Number: | WMMDS800A&H |
| Minimum Order Quantity: | 1SET |
|---|---|
| Packaging Details: | Carton Box |
| Delivery Time: | 2-4 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100SETS PER MONTH |
| Zone: | 4 Or 8zone | Display Mode: | A Or B |
|---|---|---|---|
| Control Mode: | Pneumatic Pressure Or Hydraulic Pressure |
We make customized hot runner parts & plastic mold parts for mold makers and plastic injection workshop. Include hot runner manifold,nozzle,temperature controllers, coil heaters, copper heaters,valve pin, hydraulic,cavitiy core inserts,pins and sleeves etc. 15days to door worldwide.

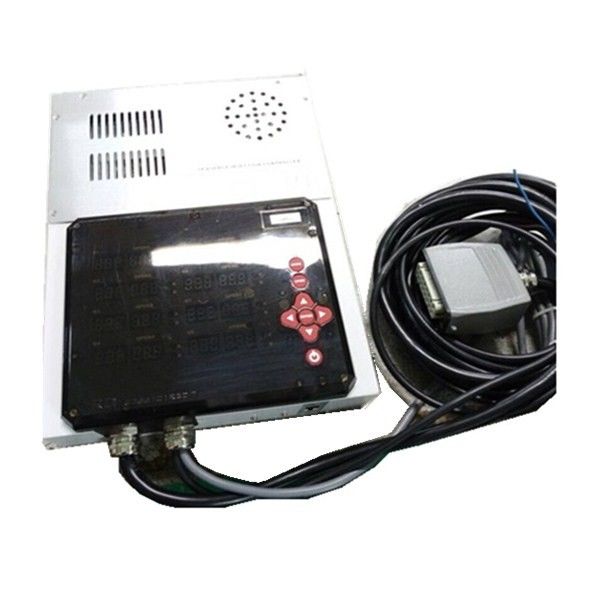

Hot Runner Sequential Timer Controller:
Integrated valve sequence time controller is dedicated to valve gate hot runner system. According to the injection molding machine signal, the valve pin action is accurately multi-stage, delay control. The controller is equipped with a high-power power supply, It can drive 8 zone air valves or oil valves at the same time. The delay precision reaches 0.01 seconds, the display is intuitive, the operation is simple, safe and practical.
| Product Code: | WMMDS800A(for pneumatic pressure) WMMDS800H(for hydraulic pressure) | |||||
| Zone: | 4 Zone or 8 Zone | |||||
| Product Specifications: | ||||||
| Main Power Input: | AC220V(50-60HZ) | |||||
| Signal Input Power: | DC24V or AC220V | |||||
| Solenoid Valve Output Power: | DC24V(less than 100mA per Gate) or AC220V(total less than 1A) | |||||
| Delay setting range(accuracy): | 999s(1s) or 99.9s(0.1s) or 9.99s(0.01s) | |||||
| Operating ambient temperature: | -10℃-50℃ | |||||
Wiring Specification:
Using Tips:
Please read the following carefully before using.
| 1 | Hydraulic valve shall not exceed 350 watts total power, 14.6A | |||
| 2 | Make sure the voltage of the solenoid valve is consistent with the sequential controller voltage before use, | |||
| 3 | Be sure to turn off the power when switch voltage (24V ↑ or 220V ↓). Otherwise easily burn. | |||
| 4 | Power supply: 220V | |||
| 5 | Please wiring by wiring on the machine. | |||
| 6 | Operation: | |||
| 1) | AB mode or off operation: Press MODE key to enter the boot (AB indicator flashes) and press the left and right shift key to switch | |||
| 2) | Decimal point switch: boot press the down key, then press the MODE key to enter (show UNIT999) and press the left and right keys to change the decimal point position. | |||
| 3) | Time adjustment: boot press down key, then press the ENTER key, then press the arrow keys to adjust the time. | |||
| 4) | OPEN, usually before accepting the injection molding machine signals used to check the operation of the valve pin. | |||
More information,please contact us anytime.
