| Place of Origin: | China |
| Model Number: | HA-004-M |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | Carton Box |
| Delivery Time: | 1-5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS |
| Number Of Contacts: | 5 | Rated Current: | 10A |
|---|---|---|---|
| Working Voltage: | 230/400V |

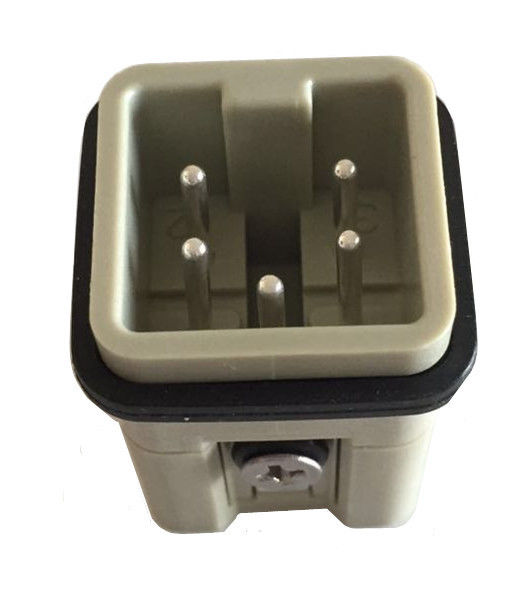

5Pin connector male insert HA-004-M IP65 protection
5Pin Male Insert Parameter:
| Inserts | |
| Number of contacts | 4+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 230/400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 10A 250V 4kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Spring terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
